Starter Example¶

Introduction¶

Purpose¶

This example

introduces the StudPy core objects
and demonstrates a complete workflow for a study.

Use Case¶

In this example, we consider a binary executable simulation tool that:

takes a main.json file as input;
produces a results.txt file as output, containing a single numeric value.

The input and output files are assumed to have the following structures:

main.json

{
    "static_attributes": {
        "static_attribute_1": 1000
    },
    "thermodynamic": {
        "temperature": 273
    },
    "seed": 3305
}

results.txt

1234.5

Our goal is to generate a dataset of inputs/outputs by varying the temperature and seed parameters.

Design workflow¶

#	Description
1	Define the Files Builder which will create the case folder structure and case input file for the simulation
2	Define the Case Builder and its parameters (1 linear and 1 random) which will create the cases and associated values
3	Define the Study which associates Files Builder and Case Builder
4	Define the Engine which says what and how to execute a simulation
5	Define the Study Runner which will orchestrate the creation of cases, creation of inputs, execute of the Engine, aggregates results and create a report and execute it

Example¶

Script¶

Create a example.py file and paste the following script.

from pathlib import Path

from studpy.cases import CaseBuilder
from studpy.inputs import FilesBuilder
from studpy import Study
from studpy.runtime import SimRunnerEngine
from studpy.runtime.study_parallel_runner import StudyParallelRunner


# ##############################################################################
# 1. Creation of a FilesBuilder

files_builder = FilesBuilder.load({
    "processors": [{
        "relative_path": "main.json",
        "source": '{"static_attributes":{"static_attribute_1": 1000}}',
    }]
})

# ##############################################################################
# 2. Creation of a CaseBuilder

case_builder = CaseBuilder.load({
    "parameters": [
        {
            "identifier": "Temperature",
            "input_path": "thermodynamic.temperature",
            "config": {"type": "linear", "size": 3, "low": 273, "high": 700}
        },
        {
            "identifier": "Seed",
            "input_path": "seed",
            "config": {"type": "random_int", "size": 2, "low": 0, "high": 6000}
        },
    ]
})

# ##############################################################################
# 3. Creation of the Study

study = Study(
    case_builder=case_builder,
    files_builder=files_builder,
    folder="tests",
)

# ##############################################################################
# 4. Creation of the Sim Runner Engine

runner_engine = SimRunnerEngine.load(
    {"runtime_folder_path": Path(""),},
    # {"main": {"type": "command", "command_template": "shuf -i 1-100 -n 1 > results.txt", "cwd": "outputs_folder_path"}}
    {"main": {
        "type": "command",
        "command_template": "jq -r '.thermodynamic.temperature * .seed' {INPUTS_FOLDER_PATH}/main.json > results.txt",
        "cwd": "outputs_folder_path"
    }}
)


# ##############################################################################
# 5 And 6. Creation of the Runner and run it

# Runner
StudyParallelRunner(
    runner_engine = runner_engine,
    study  = study,
    report_html = True,
).execute()

Results¶

Run the script

python example.py

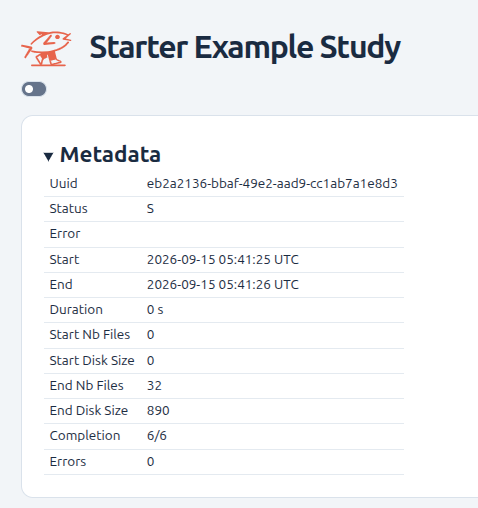

Open the generated report at tests/outputs/report.html

In the Results section you should see :

TODO

Explanations¶

1. Define the File Builder¶

# ##############################################################################
# 1. Creation of a FilesBuilder

files_builder = FilesBuilder.load({
    "processors": [{
        "relative_path": "main.json",
        "source": '{"static_attributes":{"static_attribute_1": 1000}}',
    }]
})

Purposes:

Define the main target folder that will contain all input and output files.
Specify how the input files are generated.

See API FilesBuilder

2. Define the Case Builder and its parameters¶

# ##############################################################################
# 2. Creation of a CaseBuilder

case_builder = CaseBuilder.load({
    "parameters": [
        {
            "identifier": "Temperature",
            "input_path": "thermodynamic.temperature",
            "config": {"type": "linear", "size": 3, "low": 273, "high": 700}
        },
        {
            "identifier": "Seed",
            "input_path": "seed",
            "config": {"type": "random_int", "size": 2, "low": 0, "high": 6000}
        },
    ]
})

You can build cases by adding:

print(case_builder.build_cases())

Results:

Show the datasets of parameters values like :

   Temperature  Seed
0        273.0  3305
1        273.0  5404
2        486.5  3305
3        486.5  5404
4        700.0  3305
5        700.0  5404

3. Define the Study¶

# ##############################################################################
# 3. Creation of the Study

study = Study(
    case_builder=case_builder,
    files_builder=files_builder,
    folder="tests",
)

You can manipulate the creation of cases by adding

study.case_build_inputs_all()

Results:

Create the cases folders and inputs files like :

tests/
├── cases/
├── logs/
└── outputs/

tests/
├── cases/
│   ├── 0/
│   │   ├── inputs/
│   │   │   └── main.json
│   │   ├── logs/
│   │   └── outputs/
│   │
│   ├── 1/
│   │   ├── inputs/
│   │   │   └── main.json
│   │   ├── logs/
│   │   └── outputs/
│   │
│   ...
│
├── logs/
└── outputs/

with the cases values applied like in tests/cases/0/inputs/main.json:

{
    "static_attributes": {
        "static_attribute_1": 1000
    },
    "thermodynamic": {
        "temperature": 273.0
    },
    "seed": 5368.0
}

4. Define the Engine¶

# ##############################################################################
# 4. Creation of the Sim Runner Engine

runner_engine = SimRunnerEngine.load(
    {"runtime_folder_path": Path(""),},
    # {"main": {"type": "command", "command_template": "shuf -i 1-100 -n 1 > results.txt", "cwd": "outputs_folder_path"}}
    {"main": {
        "type": "command",
        "command_template": "jq -r '.thermodynamic.temperature * .seed' {INPUTS_FOLDER_PATH}/main.json > results.txt",
        "cwd": "outputs_folder_path"
    }}
)

5. and 6. Define the Runner and Run¶

# ##############################################################################
# 5 And 6. Creation of the Runner and run it

# Runner
StudyParallelRunner(
    runner_engine = runner_engine,
    study  = study,
    report_html = True,
).execute()

TODO

report

Results:

Create the cases folders, inputs and results files like :

tests/
├── cases/
│   ├── 0/
│   │   ├── inputs/
│   │   │   └── main.json
│   │   ├── logs/
│   │   │   ├── err.log
│   │   │   └── std.log
│   │   └── outputs/
│   │       └── results.txt
│   │
│   ├── 1/
│   │   ├── inputs/
│   │   │   └── main.json
│   │   ├── logs/
│   │   │   ├── err.log
│   │   │   └── std.log
│   │   └── outputs/
│   │       └── results.txt
│   │
│   ...
│
├── logs/
│   ├── err.log
│   └── std.log
└── outputs/

TODO

report

```
